Product Introduction

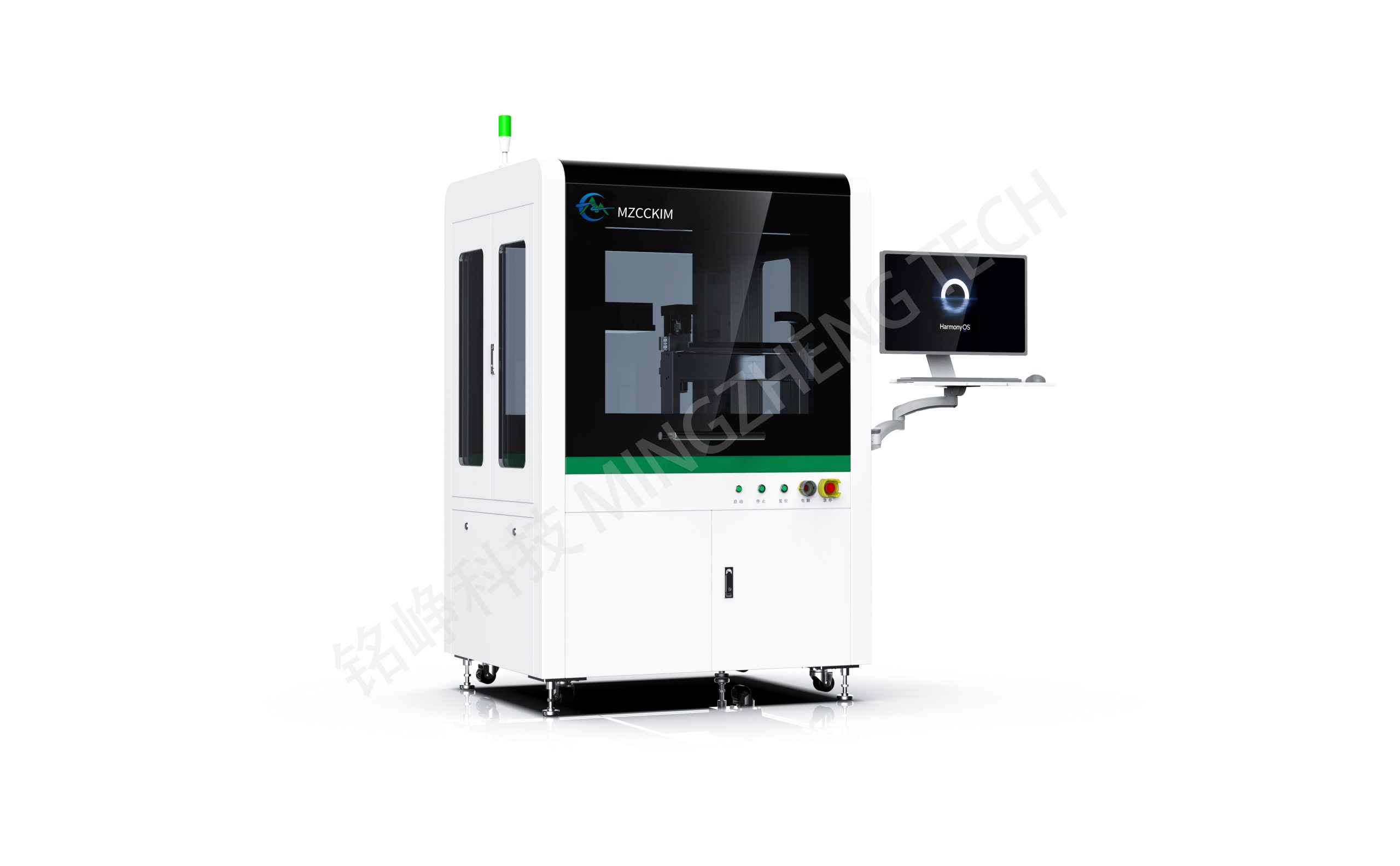

This system is designed for the assembly and lamination of membrane electrode frames, CCM (Catalyst Coated Membrane) and carbon paper. It supports both manual and automatic feeding modes, equipped with material vacuum adsorption and visual positioning functions. Heated roller pressing is adopted to realize reliable bonding of various components, featuring high positioning accuracy, wrinkle-free and bubble-free finished products, which is suitable for the R&D and large-scale production of hydrogen fuel cell MEA.
Technical Specifications
- Film Thickness: 0.1 ~ 3 mm
- Defect Rate: ≤ 2 ppm
- Visual Alignment Accuracy: ≤ ±0.02 mm
- Pressing Method: Lower Workbench Pressing
- Rolling Speed: 10 ~ 100 mm/s
- Maximum Rolling Pressure: 8 kg/cm²
- CCD Configuration: 2 sets, 1200 ~ 10000 pixels
- Vacuum Degree: Adjustable
- Applicable Product Size: 500 × 500 mm (Customizable)
- Maximum Heating Temperature: 200 ℃
- Temperature Deviation: ≤ ±3 ℃
- Heating Rate: ≥ 3 ℃/min
- External Dimensions: L2500 × W1200 × H1900 mm
Advantages & Highlights
- Integrated lamination design, capable of completing the integrated bonding of membrane electrode frames, CCM and carbon paper, simplifying the production process.
- Dual guarantee of vacuum adsorption and visual positioning, greatly improving assembly accuracy and ensuring precise bonding of all components.
- Equipped with heated roller pressing technology, effectively avoiding wrinkles, bubbles and other defects in finished products, ensuring product consistency.
- Flexibly compatible with manual and automatic feeding modes, which can be switched according to production capacity needs, taking into account both R&D and mass production.
- Product size and process parameters are customizable, suitable for the production of MEA products of different specifications.
