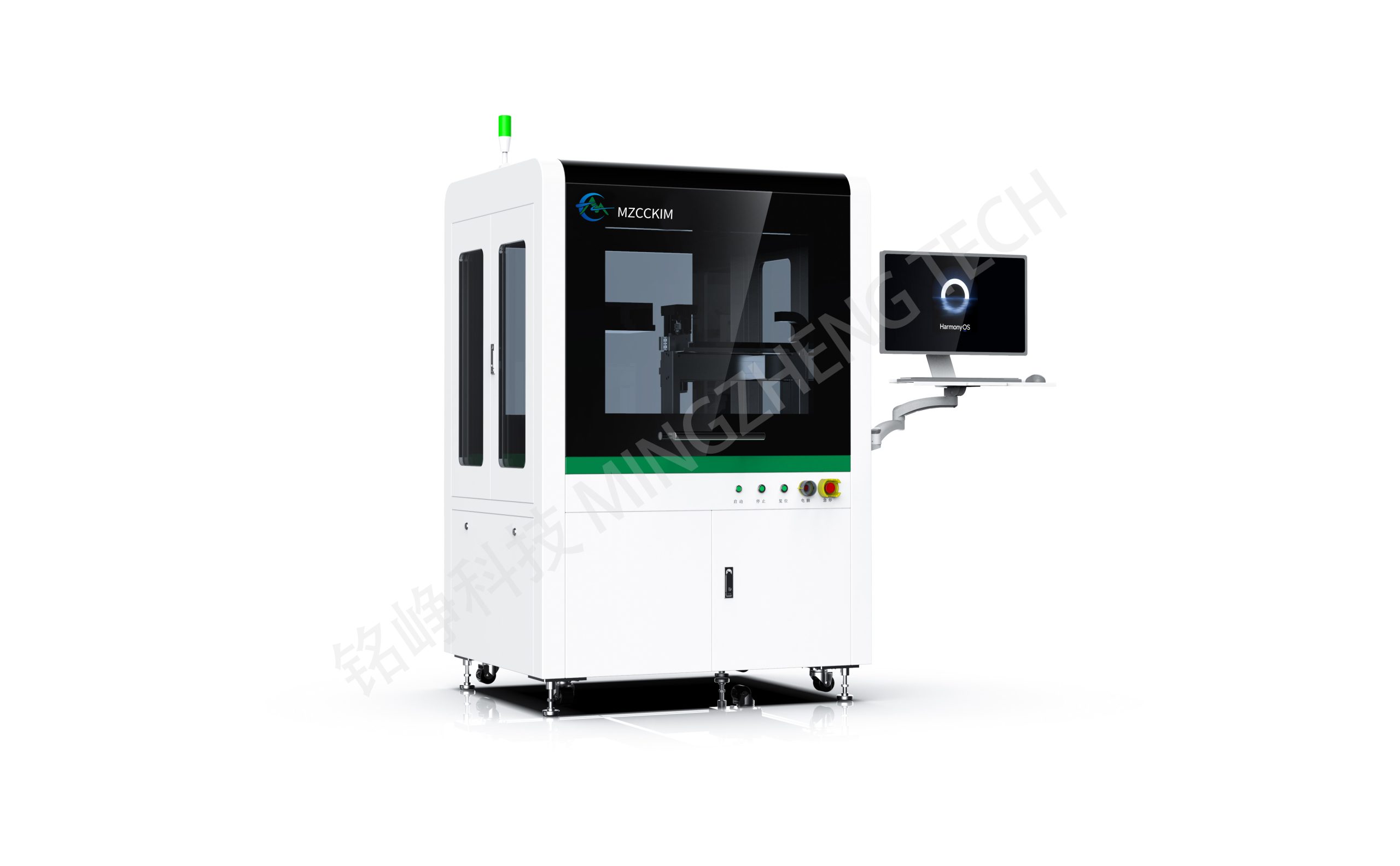

Product Introduction
This system adopts a contact detection method for the thickness measurement of CCM (Catalyst Coated Membrane) and BPP (Bipolar Plate). Combined with the structural characteristics of membrane electrodes, a high-precision contact displacement sensor is selected to balance detection accuracy and product protection. It is equipped with a vacuum adsorption function and a marble platform to ensure stable and accurate measurement without damaging the surface of the measured parts. The system supports multi-point measurement in the full range, can detect the thickness of any point of the membrane electrode, and has high module repeat positioning accuracy. It is suitable for the thickness detection needs of core components of hydrogen fuel cells, and is widely used in R&D and mass production quality inspection links.
Technical Specifications
- Measurement Range: 0~12mm
- Measurement Accuracy: ±01mm
- Sensor Measurement Resolution: 0.0001mm
- Measurement Method: Contact Measurement
- Measuring Force: ≤1N (low-pressure design, no damage to the surface of the measured part)
- Module Repeat Positioning Accuracy: 0.005mm
- Platform Specification: Marble platform, table flatness ±01mm
- Auxiliary Function: Equipped with vacuum adsorption function
Advantages & Highlights
- High Precision Detection: Equipped with a high-resolution contact sensor, the measurement accuracy is ±01mm, and the resolution is 0.0001mm, which can accurately capture subtle thickness differences.
- Non-Destructive Detection: Low-pressure measurement design (measuring force ≤1N) avoids damaging the surface of CCM and BPP, ensuring the integrity of the measured parts.
- Stable & Reliable: Supported by a marble platform with a table flatness of ±01mm, combined with a vacuum adsorption function, ensuring stable measurement process and reducing errors.
- Flexible & Comprehensive: Supports multi-point measurement in the full range, can detect any point of the membrane electrode, with a module repeat positioning accuracy of 0.005mm, suitable for the detection of multi-specification products.
