Product Introduction

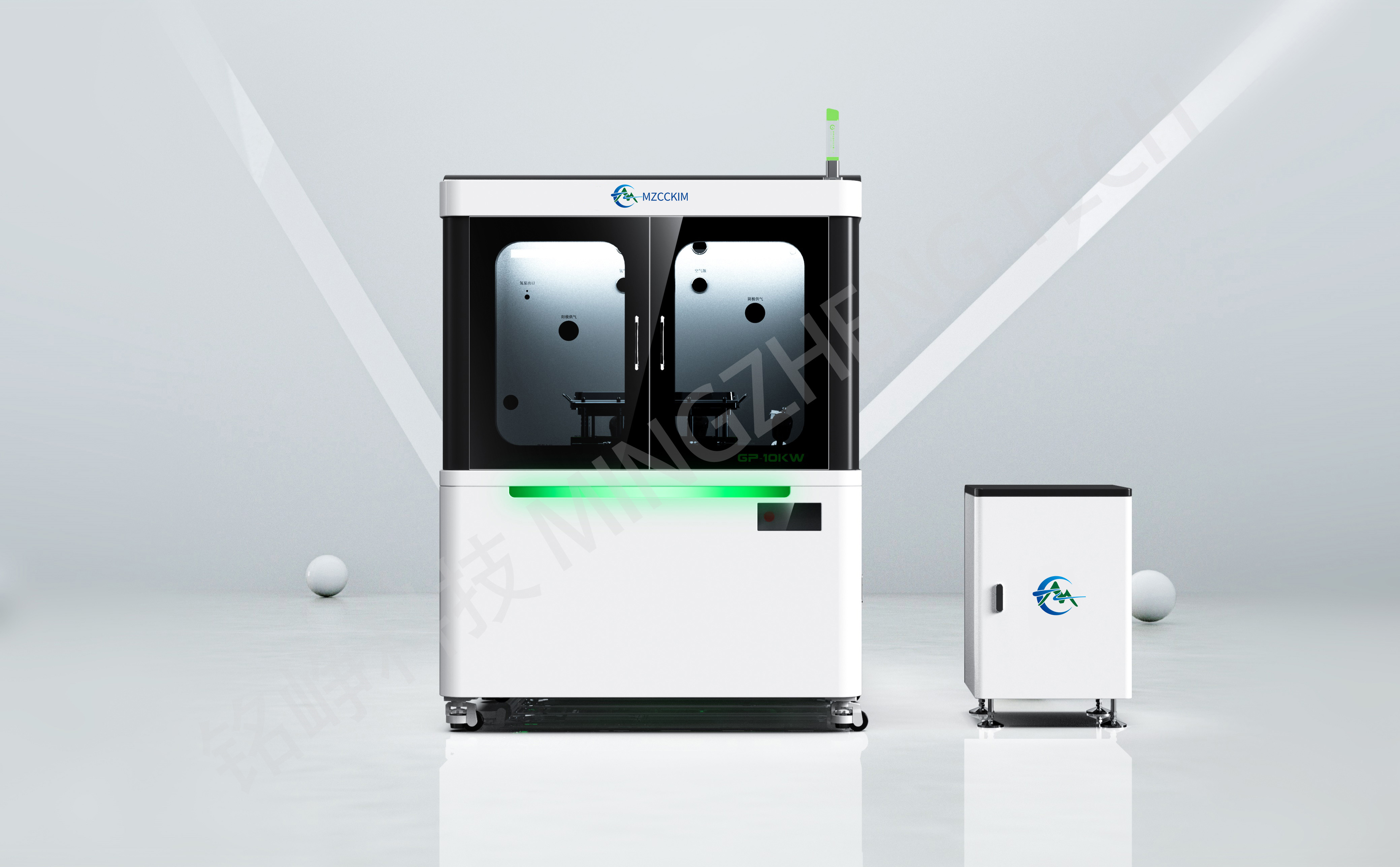

This system is mainly used for the appearance inspection of CCM (Catalyst Coated Membrane) and BPP (Bipolar Plate). Adopting the principle of optical imaging, it mainly checks whether there are defects on the appearance of membrane electrodes, including scratches, spots, holes, color differences, indentations, inclusions, damage, stains, etc.The appearance inspection is equipped with a CCD camera, which can automatically identify defects such as double-sided contamination of CCM and BPP, carbon paper damage, cracks, peeling, pits, frame bubbles, and foreign objects. The minimum defect detection size is 0.5mm. The software has deep learning capabilities; the industrial line scan camera has a pixel count of ≥16k and a pixel size of 3.5μm.
Technical Specifications
- Minimum Defect Detection Size: 0.5mm
- Industrial Line Scan Camera Pixels: ≥16k
- Camera Pixel Size: 3.5μm
- Detection Method: Optical Imaging + CCD Visual Inspection
- Software Function: With deep learning capability, capable of automatically identifying various appearance defects
Advantages & Highlights
- High Targeted: Specifically designed for the appearance inspection of CCM and BPP, covering all types of common appearance defects, suitable for the inspection needs of core components of hydrogen fuel cells.
- High Precision: Equipped with a high-pixel line scan camera, the minimum defect detection size is 0.5mm, and the pixel size is 3.5μm, effectively capturing subtle defects.
- Intelligent & Efficient: CCD automatically identifies defects, and the software has deep learning capabilities, which can continuously optimize detection accuracy and reduce manual intervention.
- Comprehensive Coverage: It can detect various defects such as double-sided contamination, carbon paper damage, and cracks, realizing one-stop appearance quality control.
